Pi4 Fan case
€9.95
Tax included
Ordered before 14:00 'o-clock, shipped the same day. (When all items are on stock.)

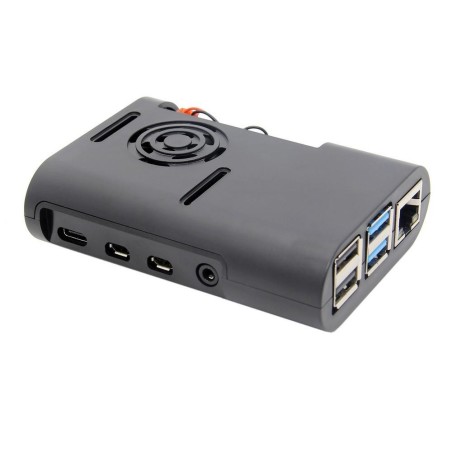

Slim case with fan and open GPIO ports
Beveiligingsbeleid
(bewerken met de module Klantenverzekering)
Shipping-policy
Ordered before 14:00 'o-clock, shipped the same day. (When all items are on stock.)

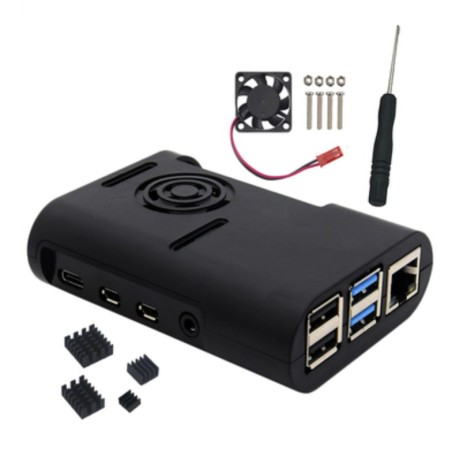

Is the Raspberry Pi getting warm and do you want a simple solution? Then this Raspberry Pi housing INCLUDING fan and heatsinks is a great solution! The Raspberry Pi can easily be placed in the case and the fan mounted on the top with 4 small screws. The housing can be closed with the 4 larger screws supplied. Rubber feet are also included, so that the housing can rest well and firmly on the surface.
For convenience, a screwdriver is included, so you really have everything you need to get started with the case.

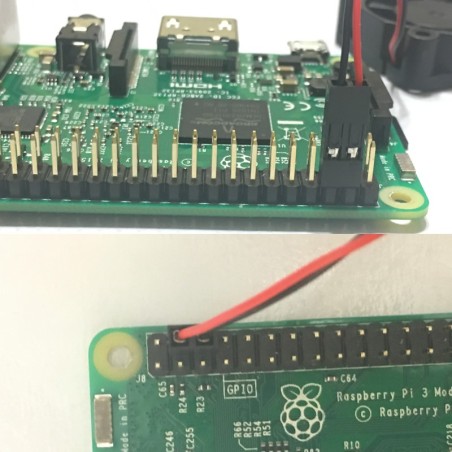

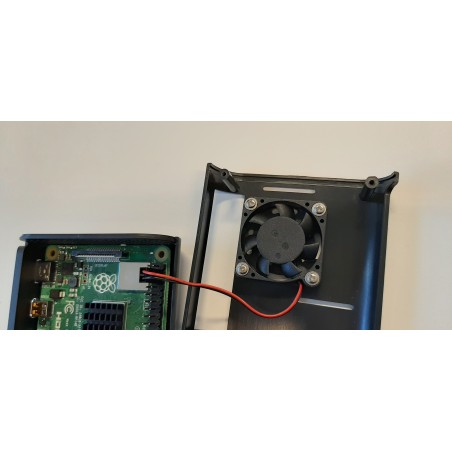

Pay attention to the placement of the FAN and the heatsinks. This is best seen in the photo.

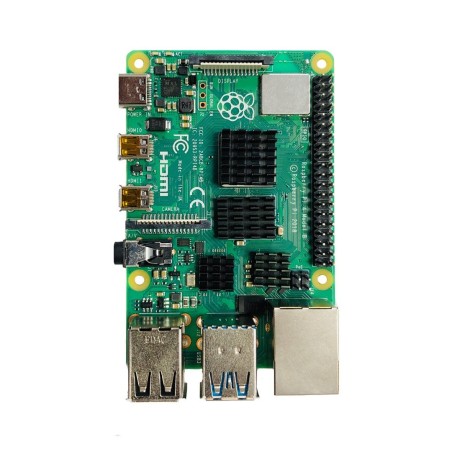

Heat sinks:
1x heat sink 14 x 14 x 7 mm for CPU
1x heat sink 10 x 15 x 5.0 mm for RAM chip
1x heat sink 8.8 x 8.8 x 5.0 mm for USB chip
1x heat sink 6 x 6 x 5.0 mm for Ethernet chip
The outer dimensions of the housing are:
6.7 cm x 9.1 cm x 2.5 cm
Slim case with fan and open GPIO ports
