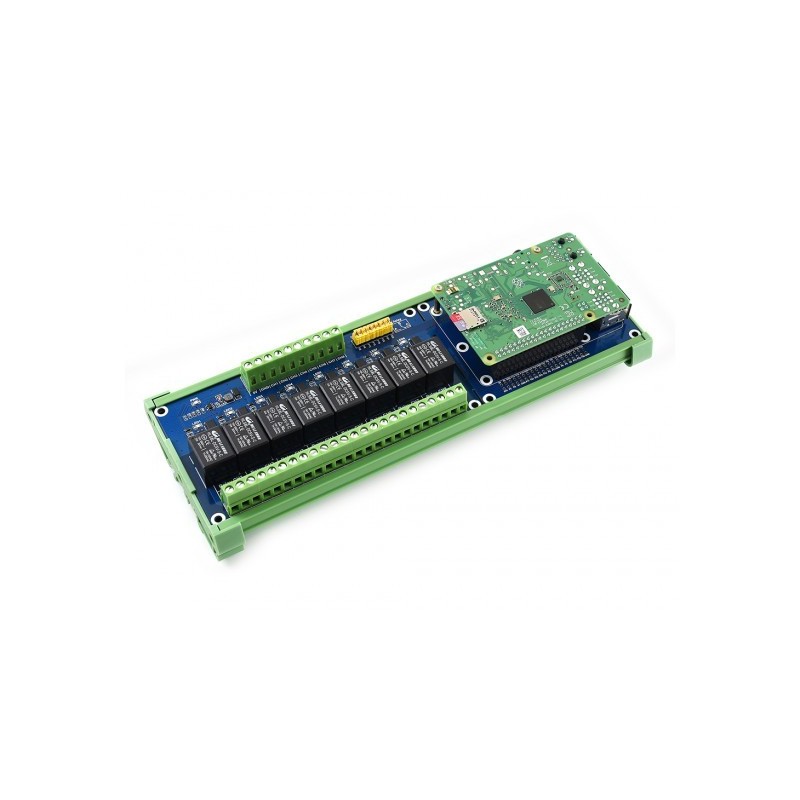

RPi Relay Board - 8 channel

Het Raspberry Pi Relais Board geeft je Pi de mogelijkheid om hoge spanning / hoge belasting apparaten aan te sturen. Hiermee maak je van huishoudelijke apparaten eenvoudig intelligente apparaten.

Board Features

• Hoge kwaliteit relais geschikt tot 250VAC/5A, 30VDC/5A
• Optocoupler geschakeld om volledige scheiding tussen circuits te houden
• Onboard LEDs voor relais statusindicatie
• Relais controle jumper om eenvoudig relais via andere pinnen dan de standaard pinnen aan te sturen
• Inclusief voorbeelden voor wiringPi, WebioPi, shell, python en bcm2835

Inclusief spacers

Dit is wat Waveshare er zelf over zegt:

The RPi Relay Board (B) is an expansion board with 8-ch relays for Raspberry Pi. It gives your Pi the ability to control high voltage products such as home appliances.

Features

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
• High quality relays, loads up to 5A 250V AC or 5A 30V DC
• Photo coupling isolation, prevent interference from high voltage circuit
• Standard rail mount bottom case
• Onboard LEDs for indicating relays status
• Relay control pin selection jumper, allows to control the relays by custom pins other than the default pins
• Reserved control Interface, allows to work with controllers like PLC
• Comes with development resources, including examples in wiringPi, bcm2835, python, python-bottle (webpage control), and crontab (cron job)

Specifications

• Power supply voltage: 5V
• Trigger signal: 3.3V/5V
• Relay channels: 8-ch
• Contact form: SPDT-NO,NC
• Closed current: 6mA (per channel)
• Connector: screw terminal block
• Dimension: 232 × 72 (mm)
• Mounting hole size: 3.0mm

Development Resources

Wiki : www.waveshare.com/wiki/RPi_Relay_Board_(B)
